PROCStar III™

Overview

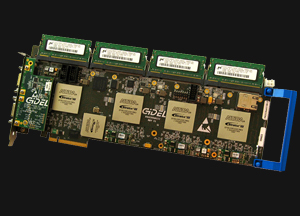

The PROCStar III™ system provides a high-capacity, high-speed FPGA-based platform fortified with high throughput and massive memory resulting in a powerful and highly flexible system. The PROCStar III can be hosted via 8-lane PCI Express. The performance, memory and add-on daughter boards' flexible architecture enable the system to meet almost any computation needs. In addition to 1GB on-board memory, eight SODIMM sockets provide up to 64GB of memory or additional connectivity and logic. Abundant memory conjoined with fast PCIe connection enable strong co-processing between a standard PC operating system and the FPGA acceleration. The PROCStar III system, with GiDEL's PROCDeveloper's Kit and tools, offers an incredible performance yet supports quick implementation of your unique design. It is done by eliminating the need for a highspeed board design, a PCI Express application driver, board constraints and environment FPGA code. The generated HDL code enables high throughput, easy-to-use parallel access to large memories. As a result, designers can focus on their proprietary value-added design. User designs may be in HDL, C-based, Simulink (graphical design) or any combination of them.

Key Features

  • Up to 4 Stratix III 80E, 110E, 260E, 150L or 340L FPGAs
  • 8-lane PCI Express (PCIe x8) host interface
  • Five level memory structure (33GB+). Maximum sustain throughput of 12,000GB/s to internal memories and 40GB/s to DRAMs as follows:
    • Up to 4160 M9K (9K-bit) DPRAM blocks (4.6MB with 11,000GB/s throughput @ 300Mhz)
    • Up to 192 M144K (144K-bit) RAM blocks (3.4MB with 1,000GB/s throughput @ 300Mhz)
    • Up to 27,000 MLAB (640-bit) RAM blocks
    • Up to 4 large 256MB (optional 512MB) DDR2 memories with 16GB/s sustain throughput using up to 24 ports. (Up to 64 ports with lower access rate)
    • 8 DDR2 SODIMMs with up to 4GB each at a maximum sustain throughput of 24 GB/s using up to 64 ports.
  • Supports 5 PROCStar III Daughter Boards (PSDB): Camera Links, User's Ethernet and other interfaces
  • Up to 4 PSDB_DSP with 3 TI DSPs
  • Typical system frequencies: 100-325 MHz.
  • Flexible clocking system.
  • Volatile and non volatile design security
  • Reference design for fast direct board to board connection via SODIMM sockets.
  • Supported by GiDEL's PROC Developer's Kits.
Benefits

  • Leading edge performance
  • Maximum flexibility to fit customer needs
  • Cuts development cycle time and budget
  • Maintainability
  • Reliability
  • Long life cycle


  • Due to the different resource usage, better utilization is expected in a full design.
  • For faster operation, use a multi-channel design.
  • For 260 and 340L performance data, contact GiDEL.
Development Environment

The PROCDeveloper's Kit, GiDEL's intuitive design and debug environment, facilitates design development effort on the PROCe III system.

The kit contains PROCWizard™ , PROCMultiPort™ IPs, Quartus and USBBlaster, and a PROCHIL™ option.

The PROCWizard performs hardware initialization and automatically generates the following:

  • Interface documentation in HTML or Microsoft Word.
  • C++ class(es) application driver(s) enable simultaneous accesses of multiple applications, each to its' dedicated section of the PROC board.
  • Top-level designs, interface modules / entities and onboard memory controllers for the application use.
  • Device constraints (as pin-outs).

The PROCMultiPort core IP provides simple access as FIFOs and frame delays to the on-board DRAM. It enables parallel access to the on-board memory while enabling to split the physical memory into multiple logical memories.

As a result the main benefits are:

  • Simplifies design and enhances system performance.
  • Replaces the need for inventory of special memories by using standard memory and IP.
