PSDB CL OUT

Overview

PSDB CL OUT is a PSDB of type 1. this means that it uses a single connection to connect to the PROC motherboard. ON PROC boards, this Connector is located to the left of the target FPGA

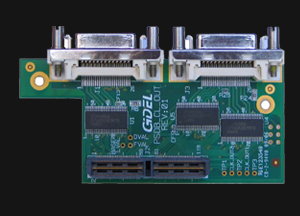

PSDB CL OUT is designed to provide a camera link connection to PROC Motherboard via panel

Provides a simple and convenient way to simulate cameralink video data with gidel procstar II and procspark II boards

PSDB CL OUT provides the following features:

  • support of standard cameralink modes
  • serial communication with reciver device
  • simple interface
  • Automatic detection by hardware/software
  • Designed to work with GIDEL PROCCamLink Simulator IP
  • Automatic integration of GidelProcCamLink Simulator IP into Users top Level Design Gidel Proc Wizard
