GiDEL's PSDB CL™
Overview
GiDEL PSDB CL™ is a type 1 PSDB. This means that uses a single connector to connect to the PROC motherboard. On the PROC boards, this connector is located to the left of the target FPGA.
PSDB CL™ is designed to provide a CameraLink connection to the PROC motherboard via its panel. Therefore, this daughterboard is intended to be placed on location 1 when possible. Nevertheless, it will work properly when connected to any other location on the PROC board.
GiDEL PSDB_CL™ was designed to provide a simple and convenient way to connect an external camera to GiDEL PROCStar II™ and PROCSpark II™ boards.
PSDB CL key Features Include:
- Support of standard CameraLink modes (base, medium, full or dual base assembly)
- Serial Communication with camera
- Simple interface
- Automatic detection by hardware / software
- Designed to work with GiDEL PROCCamLink™ IP
- Automatic integration of PROCCamLink IP into user's toplevel design using GiDEL PROCWizard™

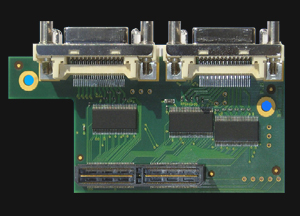

PSDB_CL uses two MDR 26-pin female connectors (J1 and J3), according the CameraLink standard.
The following adapters are used in PSDB_CL to adapt the CameraLink Signals:
- National Semiconductor DS90CR288A for LVDS to LVTTL adapting of data signals.
- National Semiconductor DS90LV047A for LVDS to LVTTL adapting of control signals.
- National Semiconductor DS90LV019 for LVDS to LVTTL adapting of serial control signals.
