PSDB Flash

Overview

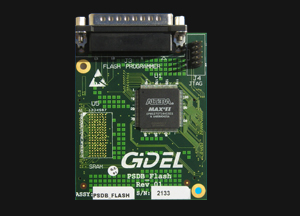

GiDEL PSDB_Flash ™ is a type 2 daughterboard (PSDB2) that completes this mechanism by providing a non-volatile memory, both for FPGA configuration and for user data.

PSDB_Flash provides the following features:

  • 128 Mb Flash Memory for boot in Stand Alone mode (Boot Flash).
  • 128 Mb Flash Memory for user's code or data storage (User Flash).
  • LPT port connector for Boot Flash loading using LPTFlashLoader.
  • Fast Boot Flash loading using PROCWizard ™ in PCI mode.
  • 16Bit or 8Bit Data width on User Flash.
  • Automatic detection by hardware / software
